SILOS AND AUGERS

SYSTEMS

SILOS AND AUGERS

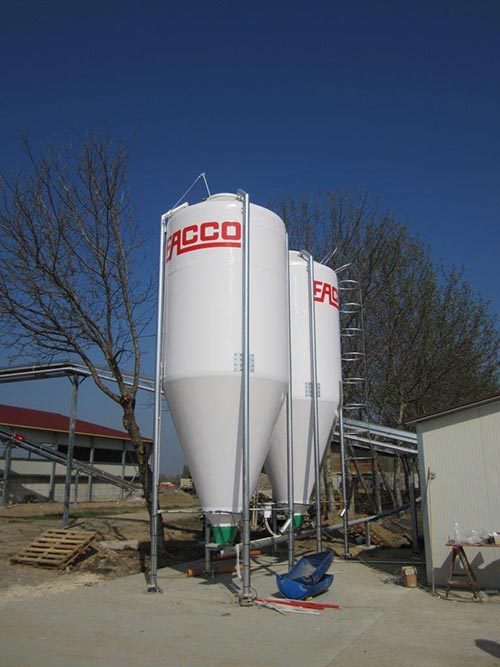

Fiberglass silos

Those silos are made made of special fiberglass , light and tight sealed to avoid water infiltration, high mechanical resistance and insulation. Long lasting, they don’t corrode or rust and are maintenance free. Available in different versions and capacities ranging from 5,5 ton to 31,5 ton covers the full range for feed storage.

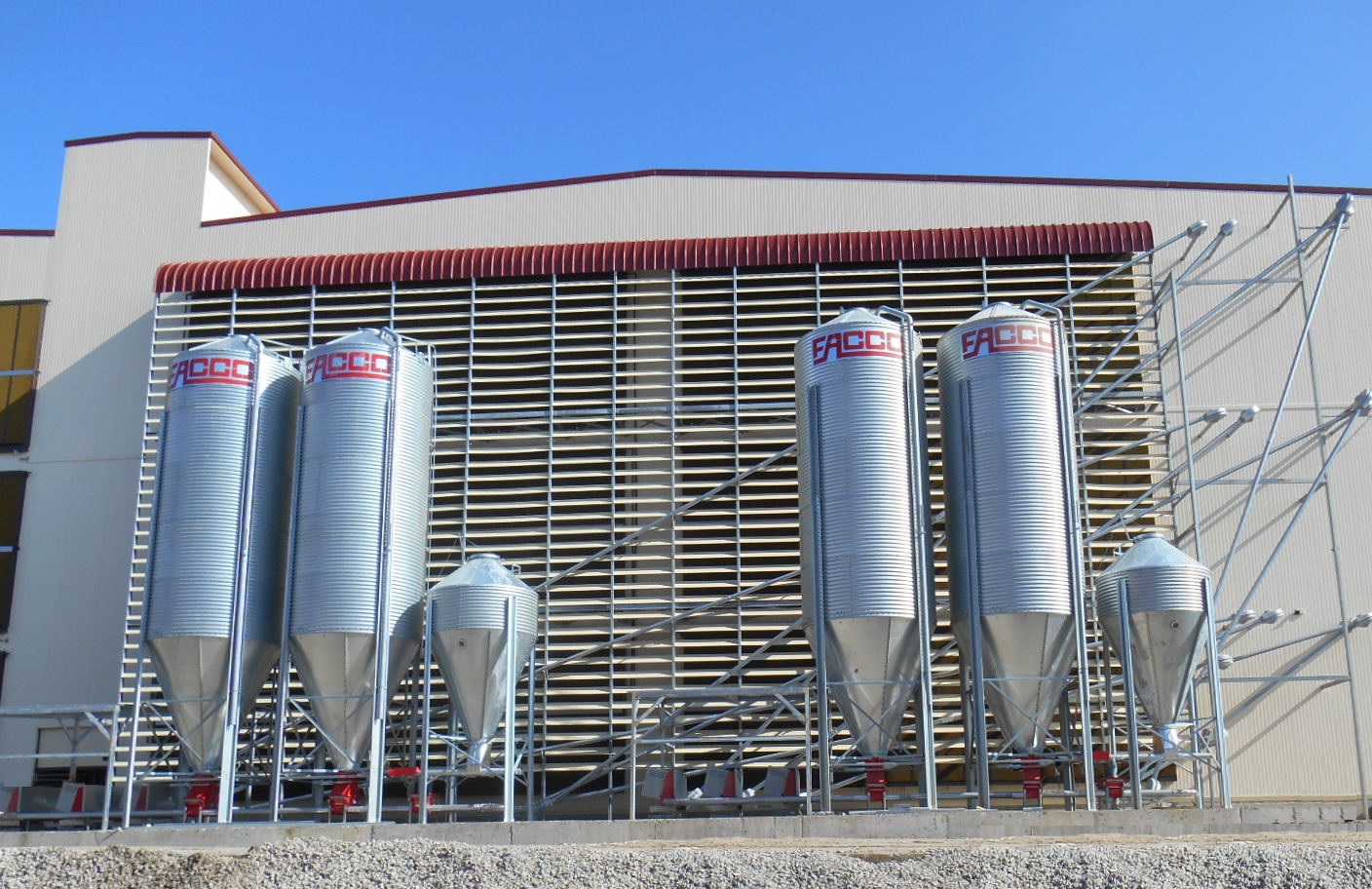

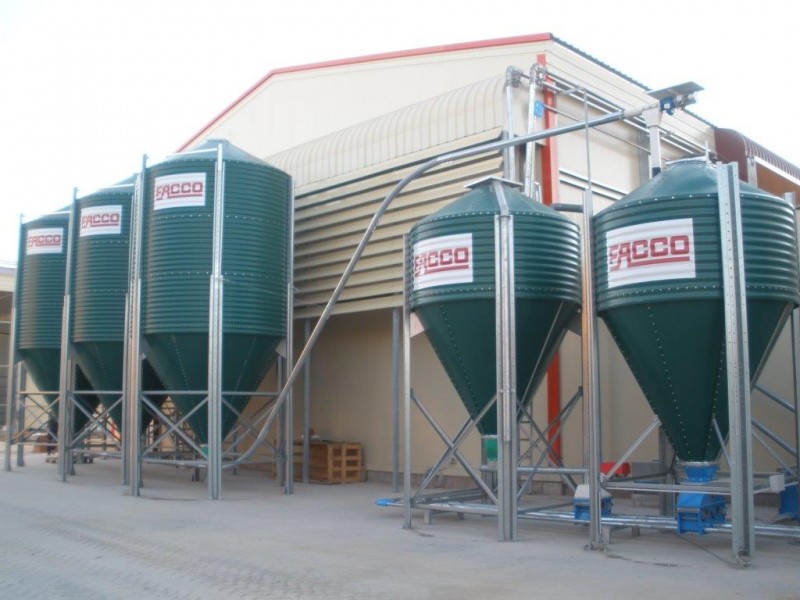

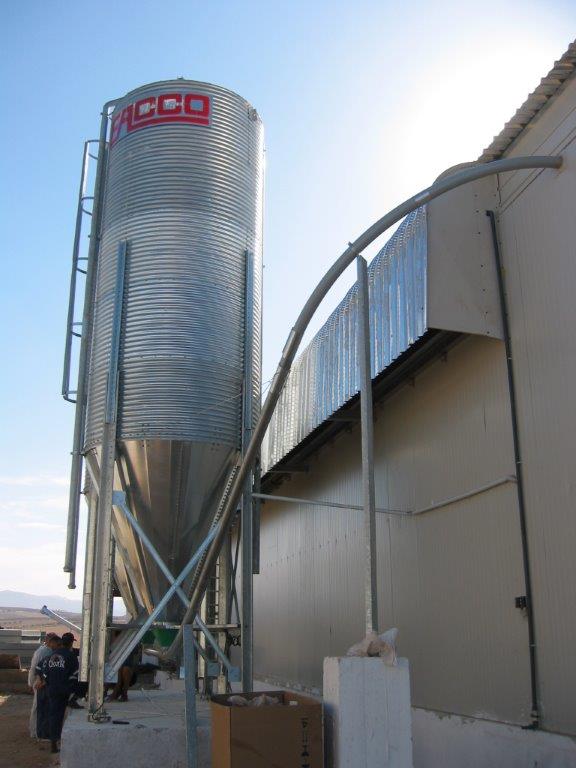

Corrugated silos

The silos are made of sturdy galvanized horizontal corrugated sheets bands with the bottom rings 10/10 mm thick and all the others 8/10 mm thick.
They are corrosion free and sealed against any water infiltrations. Available also with isolation and covering for hot climates.



Plain sheet silos

The silos are made of sturdy galvanized horizontal plain sheets bands with the bottom rings 10/10 mm thick and all the others 8/10 mm thick.



Optional and additional equipment for silos

  • VIBRATOR FOR SILO: The vibrator can be installed on different types of silo. For each type of silo there are different brackets to fit onto the silos. Motor 2800 rpm voltage 200-380-415V 0,12 HP.
  • LOADING AUGER 150 mm: The loading auger has a hopper with a capacity of 80kg made of painted steel with thickness 20/10 mm. Motor 1400 rpm voltage 200-380-415V 3-4 HP according to the length of the auger and height.
  • ISOLATION OF SILO FOR HOT WEATHER: Outside coating of the silo with aluminium sheet 8/10mm thick creating an air chamber of 100 mm. Only for SY silo models.
  • PNEUMATIC LOADING PIPE: Loading pipe for pressure loading from trucks.
  • MOTORIZED SHUTTER FOR SILO OUTLET: motorized regulation of the exiting feed
